Zintra Sticks are a versatile range of fabricated acoustic sticks designed for easy installation in any space.

Sticks Trim are designed to complement Zintra Sticks Bundles. Impeccably finish around windows, doors, ceiling services and GPOs with our Sticks Trim. Supplied as a separate right-angle piece, Sticks Trim is easily cut in the field to mitre or butt join and glue to Sticks sets to provide a matching Timber finish to exposed ends

Additionally, a selection of Sticks are available to address transitions, and corners, ensuring a comprehensive solution tailored to your space.

Sticks Transition: Seamless corner transitions are possible with the use of purpose designed Sticks Transition. Designed to join bundles at inside corners and available in Landscape or Portrait.

Sticks External Corner: A purpose designed transition piece that seamlessly deals with the corners of a wall. Available in Landscape or Portrait and in two widths, narrow and wide.

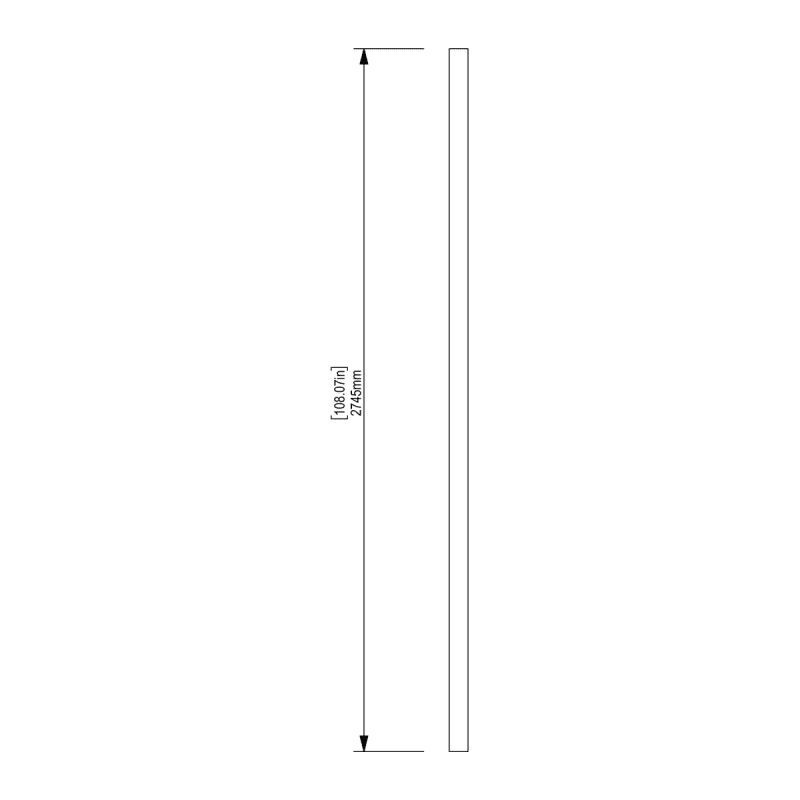

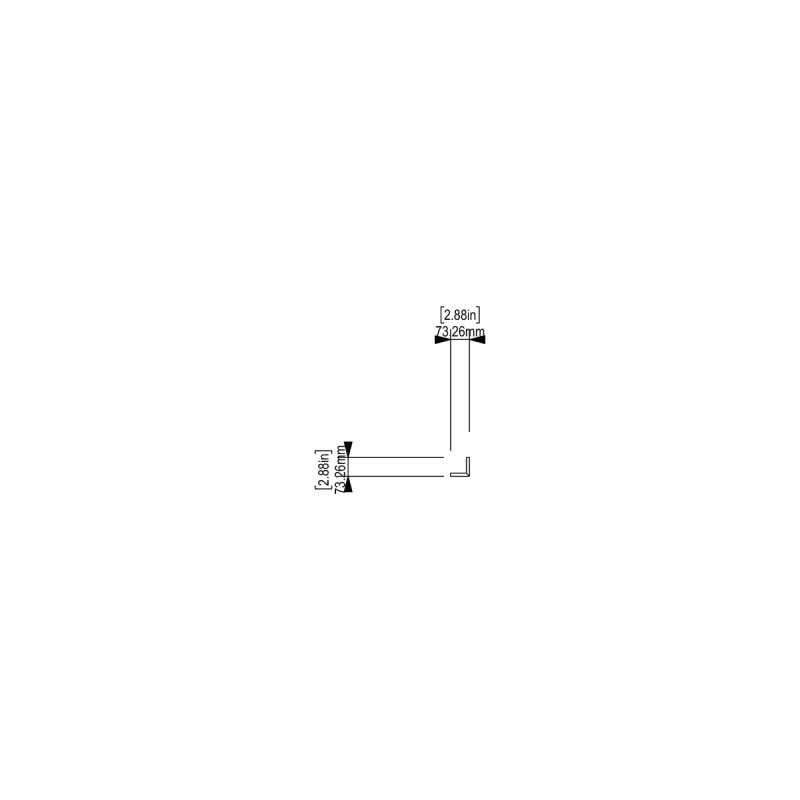

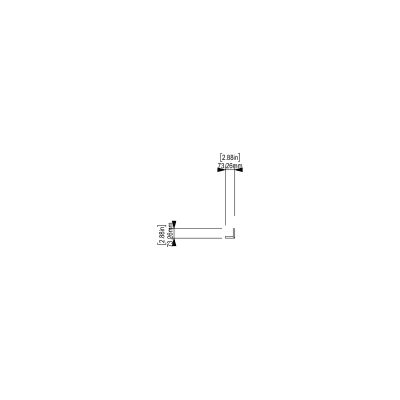

Sticks Trim:

2745mm (108") h x 73mm (2.88") w x 73mm (2.88") d

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") -Density 2.4 kg /m² 0.5 lb/ft²

Zintra Panel - Matt. Check out the Zintra 12mm colour range in the DOWNLOADS

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships flat pack except Sticks Trim. Assembly required.

Go to the Technical Documents and download the Installation Guide for more details.

Trim:

1 x Zintra Trim

Ships assembled.

Download Installation Guide for full instructions.

Stanley knife and straight edge

1. Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

NRC Rating:

• Directly mounted: 0.8

• With 6" (152mm) Air Gap: Up to 0.95
