Large spaces require acoustic solutions that match their scale. Zintra Beams collection address this need perfectly, offering substantial proportions that exude a sense of structure and architectural grandeur. Their modular design allows for a variety of configurations across a range of styles and sizes and includes connectors for effortless customization to suit any space.

There are 5 different geometric designs available: Open & Closed Rafter, Rectangular, Square and Parallel Beams, available in various sizes (please refer to the dimensions for design specific details). We even have a coffer available to suit open, closed and square designs for added acoustic comfort.

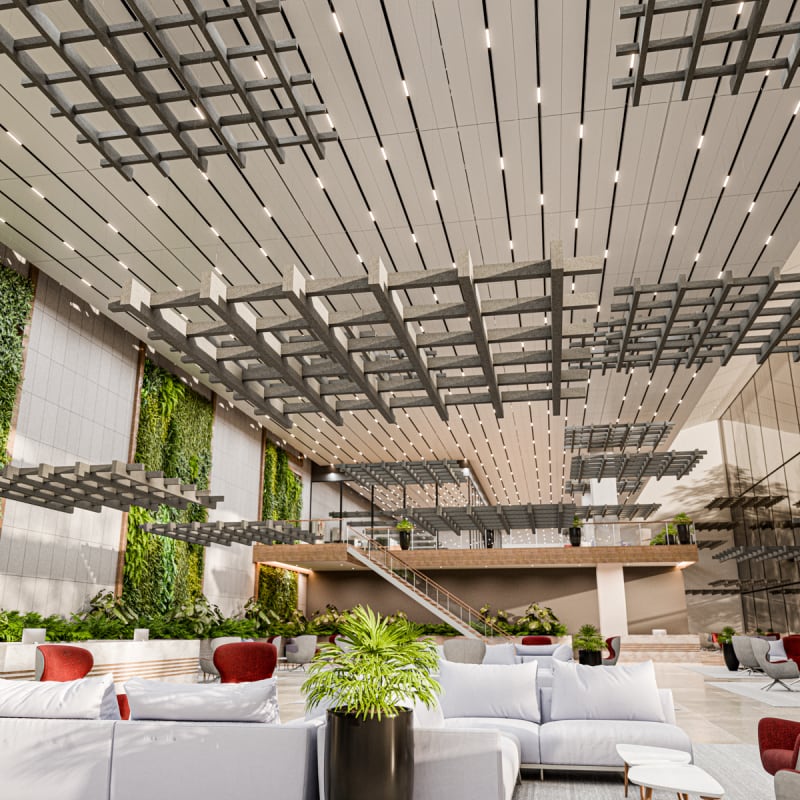

Open Rafter

A rustic and character-filled design, emphasizing its open-edge feature as the core of its modular structure. Available in five standard configurations, providing lightweight solutions tailored to various spaces. With a selection of 30 colours and realistic wood prints, it aims to enhance architectural aesthetics. Specifically engineered for superior acoustics and optional coffer panels available to further improve NRC rating.

Engineered for superior sound absorption, Zintra Beams function as porous absorbers across the entire frequency range. This significantly enhances the NRC rating, up to a maximum of 1.5.

Open Rafter

• 5 x 5  3658mm (144") w x 203mm (8") h x 3658mm (144") d

• 4 x 5  3048mm (120") w x 203mm (8") h x 3658mm (144") d

• 3 x 5 2438mm (96") w x 203mm (8") h x 3658mm (144") d

• 2 x 5 1829mm (72") w x 203mm (8") h x 3658mm (144") d

• 1 x 5 1219mm (48") w x 203mm (8") h x 3658mm (144") d

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from Zintra bottles.

• 35% pre-consumer recycled content from Zintra chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships Flat Pack

• Assembly Required.

• Cable Suspension OR Unistrut. Refer preferred installation method Install Guide

Go to the Technical Documents and download the Installation Guide for more details.

Flat Pack – Details per design:

Open Rafter

• 1 x Kit of chosen size including: Clear 24mm (1") Beams Clip

• 5 x 5 =144 | 4 x 5 =122 | 3 x 5 =100 | 2 x 5 =78 | 1 x 5 =56 (Clips)

Go to Technical Documents and download the Installation Guide for more details.

1. Select design

2. Select Size

3. Select Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

• NRC 1.0

• NRC 1.5 With Coffers
